OpenDroneID & Android Integration

Executive Summary

OpenDroneID acts as a digital beacon. Any smartphone within range can pick up the signal using the free OpenDroneID app. This provides public accountability and situational awareness.

Theory & Concepts

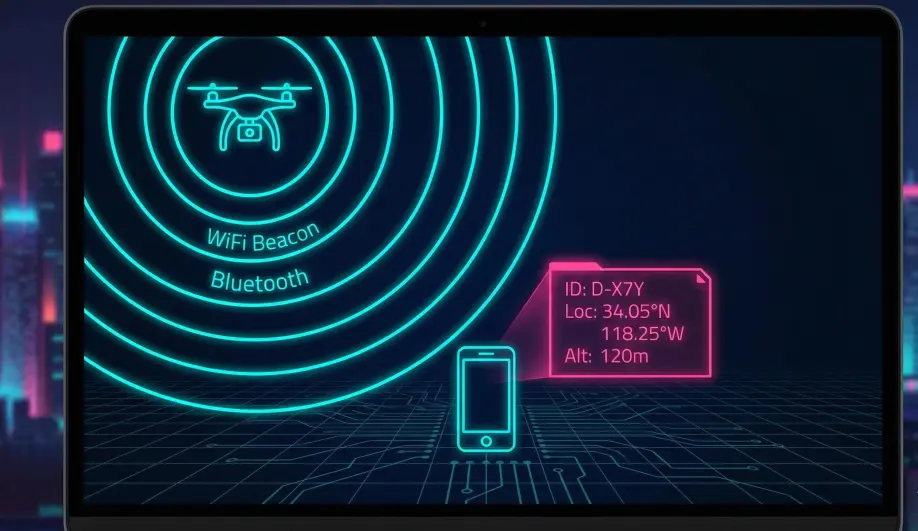

1. The Broadcast Mediums

Standard Remote ID modules must broadcast on specific frequencies:

  • Wi-Fi Beacon (NaN): Uses the "Neighbor Awareness Networking" protocol. High bandwidth, medium range.
  • Bluetooth 4.0 (Legacy): Short range, widely compatible.
  • Bluetooth 5.0 (Long Range): Can reach up to 1km+, but requires modern hardware.

2. What the Public Sees

Anyone with the app sees:

  • Drone Position: Lat/Lon, Altitude (Height), Direction.
  • Velocity: Horizontal and Vertical speed.
  • Operator Position: Where the pilot is standing.
  • ID: The Serial Number or Session ID.

Codebase Investigation

1. Data Limits: AP_OpenDroneID.h

Located in libraries/AP_OpenDroneID/AP_OpenDroneID.h.

  • Speed Cap: ODID_MAX_SPEED_H is 254.25 m/s. Anything faster is clipped.
  • Altitude Cap: ODID_MAX_ALT is 31767.5 m.
  • Direction: 0-360 degrees.

Currently, MAVLink HUD acts as a GCS for your drone. It does not contain an SDR to sniff other drones.

  • Potential Future: If the connected radio (e.g., TBS Crossfire or ELRS) reported nearby traffic via ADSB-style messages, the HUD could display them.
  • Current State: You rely on the separate OpenDroneID app to see others.

How To: Test Visibility

1. Download the App

Get the "OpenDroneID" app from the Google Play Store (or GitHub).

2. Power Up

Power your drone (with props off). Wait for GPS lock.

3. Scan

Open the app on your phone.

  • Result: You should see your drone's icon appear on the map.
  • Details: Tap the icon to see the "Self ID" text and your Operator ID.
  • Troubleshooting: If you don't see it, ensure your phone supports Bluetooth 5.0 or Wi-Fi NAN, and that you are physically close to the module.
