Embedded MAVLink: Integrating with ESP32 & Arduino

Executive Summary

For high-performance companion computers (like ESP32 or STM32), you cannot use Python (pymavlink). You must use the generated C/C++ headers. These headers provide a highly optimized, allocation-free way to serialize and parse MAVLink packets directly from the UART byte stream.

Theory & Concepts

1. Header-Only Architecture

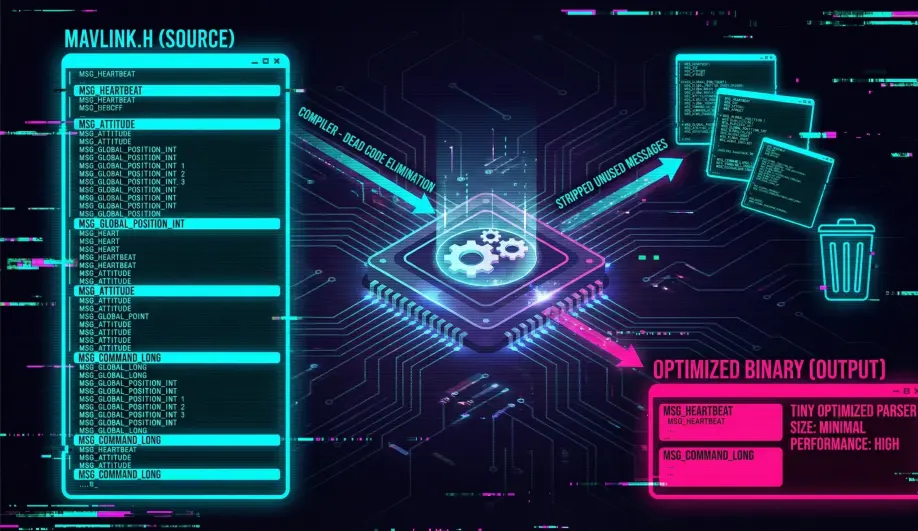

The MAVLink C library is "Header-Only."

• What it means: There is no .cpp file to compile. All the logic is in .h files using static inline functions.
• Why: This allows the compiler to optimize away unused messages, resulting in zero overhead for messages you don't use.
• Integration: You simply #include "mavlink.h" and point your compiler to the directory.

2. The State Machine Parser (mavlink_parse_char)

MAVLink is a stream protocol. Bytes arrive one by one.

• The Problem: How do you find a packet in a continuous stream of bytes?
• The Solution: A state machine.
  1. Wait for Magic Byte (0xFE or 0xFD).
  2. Read Length.
  3. Read Sequence.
  4. ...
  5. Check CRC.
• Result: The parser returns 1 only when a valid, verified packet has been fully reassembled.

Architecture (The Engineer's View)

1. Packing a Message

To send a message, you use a "Pack" function.

• Function: mavlink_msg_heartbeat_pack(sysid, compid, &msg, type, autopilot, ...)
• Output: It fills a mavlink_message_t struct.
• Serialization: You then call mavlink_msg_to_send_buffer() to convert that struct into a byte array for your UART driver.

2. Parsing a Message

To receive, you feed bytes into the parser one by one.

while (Serial.available()) {
    uint8_t c = Serial.read();
    if (mavlink_parse_char(MAVLINK_COMM_0, c, &msg, &status)) {
        // Packet Received!
        switch (msg.msgid) {
            case MAVLINK_MSG_ID_HEARTBEAT:
                handle_heartbeat(&msg);
                break;
        }
    }
}

Key Parameters for Integration

• System ID: Your device needs a unique ID (e.g., 51 for a Gimbal, 100 for a Camera). Don't use 1 (The Drone) or 255 (The GCS).
• Component ID: Defines what you are (e.g., MAV_COMP_ID_ONBOARD_COMPUTER).

Source Code Reference

• ArduPilot Wrapper: GCS_MAVLINK
• Core Parser: mavlink_helpers.h (Generated)

Practical Guide: The Heartbeat (Hello World)

If you don't send a heartbeat, ArduPilot won't talk to you. Here is the minimum code to establish a link.

1. The Setup

#include "mavlink/common/mavlink.h"

// My Identity
uint8_t my_sysid = 1; // Same vehicle
uint8_t my_compid = 191; // MAV_COMP_ID_ONBOARD_COMPUTER

2. The Loop (1Hz)

void send_heartbeat() {
    mavlink_message_t msg;
    uint8_t buf[MAVLINK_MAX_PACKET_LEN];

    // Pack the message
    // Type: Onboard Controller, Autopilot: Invalid (I'm not a flight controller)
    mavlink_msg_heartbeat_pack(my_sysid, my_compid, &msg,
                               MAV_TYPE_ONBOARD_CONTROLLER,
                               MAV_AUTOPILOT_INVALID,
                               0, 0, 0);

    // Serialize
    uint16_t len = mavlink_msg_to_send_buffer(buf, &msg);

    // Send via UART
    Serial.write(buf, len);
}

3. The Result

Open Mission Planner -> Ctrl+F -> MAVLink Inspector.
You should see a new Component (191) appearing in the list, updating every second.
