Packet Rates, Latency & Range

Executive Summary

One size does not fit all. ExpressLRS forces you to choose your Packet Rate (Update Frequency). This choice defines the fundamental capabilities of your link. A 1000Hz link feels instantaneous but is fragile behind trees. A 50Hz link feels sluggish but can punch through a concrete building.

Theory & Concepts

1. The Latency Triangle

You can pick two:

  1. Speed (Low Latency): Good for racing. Requires fast packets.
  2. Range (Sensitivity): Good for long-range. Requires slow packets (high Spreading Factor).
  3. Reliability: Good for noise. Requires redundancy (DVDA/Gemini).

2. The Rates

  • 1000Hz / F1000: The "God Mode" of racing.
    • Latency: ~1.5ms.
    • Physics: Uses FLRC (Fast Long Range Communication), not LoRa. It behaves like standard FSK. Sharp cliff effect at range limit.
  • 500Hz: The standard for Freestyle.
    • Latency: ~2.5ms.
    • Physics: Lowest LoRa setting. Good balance.
  • 250Hz: The "Sweet Spot" for MAVLink.
    • Latency: ~6ms.
    • Reasoning: It provides enough bandwidth for Telemetry (1:2 ratio) while maintaining excellent range.
  • 50Hz: The "Long Range King."
    • Latency: ~22ms.
    • Physics: High Spreading Factor. Can decode signals 18dB lower than 500Hz. This triples your range.

In legacy systems, RSSI (Signal Strength) was king. In ELRS, LQ is king.

  • LQ: The percentage of packets successfully received.
  • The Cliff: LoRa works perfectly until it doesn't. You can have perfect control at -120dBm (basically zero signal) as long as LQ is high.
  • The Warning: If LQ drops below 70%, you are losing data.

Architecture (The Engineer's View)

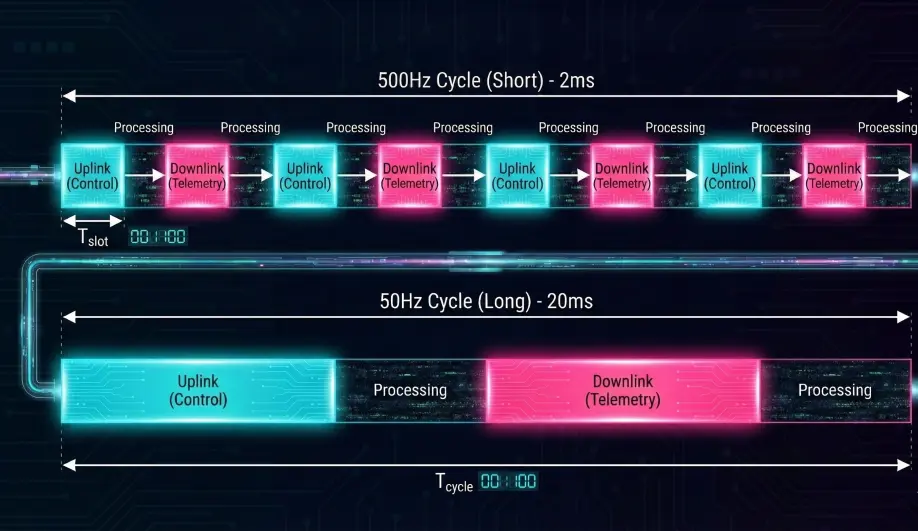

1. Packet Cycle

At 500Hz, a cycle is 2ms.

  • Uplink (TX -> RX): Control Data.
  • Downlink (RX -> TX): Telemetry (if it's the telemetry slot).
  • Processing: The Flight Controller must run its loop fast enough (400Hz/1kHz) to consume this data without aliasing.

For MAVLink HUD usage:

  • 50Hz: Too slow. 1:2 ratio = 25Hz telemetry. Max bandwidth ~200 bytes/sec. Not enough for smooth HUD.
  • 250Hz: Recommended. 1:2 ratio = 125Hz telemetry. Max bandwidth ~1000 bytes/sec. Smooth HUD.

Key Parameters

  • Packet Rate (Lua Script): The master setting.
  • Telem Ratio (Lua Script): How often to send data back.

Source Code Reference

Practical Guide: Unlocking Smooth Telemetry

Many pilots connect ELRS and see MAVLink data at a crawl (0.5Hz - 1Hz). This is not a bug; it is ArduPilot reacting to your link health.

The Mechanism

ArduPilot monitors the "RF Mode" reported by your ELRS receiver via the CRSF protocol.

  • Low Speed (50Hz - 150Hz): ArduPilot enters "Bandwidth Conservation Mode." It strictly limits telemetry to essential stats (Battery, GPS) at very low rates to prioritize RC control packets and prevent link congestion.
  • High Speed (250Hz+): ArduPilot unlocks the "High Speed Profile," allowing much faster telemetry updates suitable for HUDs and real-time monitoring.

The Fix

  1. On your Transmitter (Lua Script): Set Packet Rate to 333Hz Full or 500Hz.
  2. Telemetry Ratio: Set to Std (1:64) or 1:2.
    • Counter-Intuitive: Even if you set a high ratio (1:2) at 50Hz, the total bandwidth is still too low for ArduPilot's scheduler to feel comfortable sending bulk data. You must increase the Packet Rate to unlock the scheduler.

Verification

Check the LINK_STATISTICS or RADIO_STATUS message. If rx_errors is low but the stream rate is high, ArduPilot has successfully engaged the high-speed profile.

For more details on ArduPilot's CRSF integration, see the ArduPilot Wiki: CRSF Telemetry.
