Altitude Hold (Copter)

Executive Summary

Altitude Hold (AltHold) is a semi-autonomous flight mode that automatically maintains a consistent Z-axis altitude while allowing the pilot to manually control roll, pitch, and yaw. It acts as a "cruise control" for height, relieving the pilot of throttle management.

Theory & Concepts

1. Z-Axis Physics: The Gravity Neutral Point

To hold altitude, the drone must produce exactly enough thrust to counter gravity.

  • The Problem: Battery voltage drops during flight, and air density changes with height. "50% Throttle" does not produce a constant amount of lift.
  • The Solution: The Altitude Controller learns the Hover Throttle (MOT_THST_HOVER) dynamically. It continuously calculates the "Neutral Point" where the drone neither climbs nor falls.

2. Barometric Drift vs. Inertial Certainty

Barometers are sensitive to noise. If you rely solely on a barometer, the drone will "bounce" as the air pressure fluctuates.

  • Fusion: ArduPilot fuses the Barometer with the Z-Accelerometer.
  • The Logic: The Accelerometer detects instant changes (e.g., "I just dropped 5cm!"), while the Barometer provides the long-term truth (e.g., "I am 10m high"). This fusion creates a smooth, lag-free altitude hold.

Hardware Dependency Matrix

Unlike Stabilize or Acro, this mode depends heavily on a Z-axis estimator.

Sensor Requirement Code Implementation Notes
Barometer REQUIRED Primary source for altitude estimation. If the barometer drifts (e.g., due to light hitting it or air pressure changes), the drone will drift vertically.
Accelerometer CRITICAL Used for inertial navigation to fuse with barometer data for a low-latency Z-estimate.
Rangefinder OPTIONAL If installed and enabled (RNGFND_GAIN > 0), the EKF can use it for low-altitude precision, but the mode falls back to Baro seamlessly.
GPS NONE Not required. Ideal for indoor flight.

Control Architecture (Engineer's View)

AltHold is effectively two different modes running simultaneously:

  1. Horizontal (X/Y): Stabilize Mode
    • Pilot Roll/Pitch sticks map directly to Lean Angle (e.g., 45 degrees).
    • When sticks are centered, the vehicle self-levels.
    • Note: It does not hold horizontal position; it will drift with the wind.
  2. Vertical (Z): Velocity Controller
    • Pilot Input: The throttle stick commands a Climb Rate (cm/s), not a motor power level.
    • The Cascade:
      • Input: get_pilot_desired_climb_rate() converts stick position to target velocity.
      • Velocity Loop: Compares target vs actual climb rate. Error feeds into...
      • Accel Loop: Compares target vs actual Z-acceleration. Error feeds into...
      • Motor Mixer: Final throttle output.

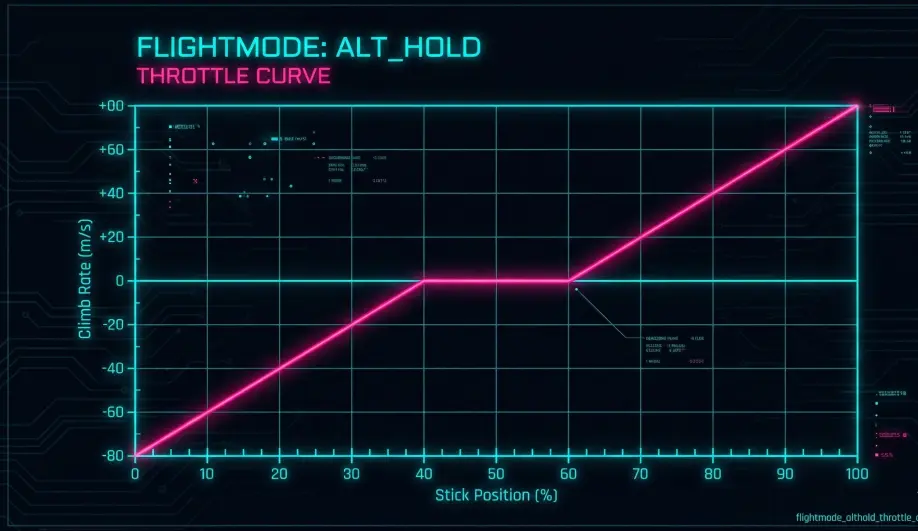

Pilot Interaction & Deadzone

The throttle behavior is defined by the Deadzone (THR_DZ).

  • Center Stick (Deadzone): When the throttle is within the deadzone (typically 40%-60%), the target climb rate is forced to 0. The controller locks the current altitude.
  • Outside Deadzone: The stick commands a linear climb/descent rate up to PILOT_SPEED_UP (default 250 cm/s) or PILOT_SPEED_DN.
  • Tactile Feel: This creates a "sticky" feel at center, allowing you to let go of the throttle without the drone falling.

Failsafe & Safety Logic

  • Vibration Sensitivity: Because the Z-controller relies heavily on the Accelerometer (Z-axis) to react fast, high vibrations can cause AltHold to fail.
    • Symptom: The drone shoots up (Skyrocket) when engaging AltHold.
    • Cause: Aliasing of vibration noise into the Z-accel signal makes the EKF think the drone is falling, so it applies max throttle.
  • Barometer Glitches: Sudden pressure changes (opening a door, sunlight hitting the sensor) can cause jumpy altitude corrections.

Key Parameters

Parameter Default Description
PILOT_SPEED_UP 250 Max climb rate (cm/s) at full throttle.
PILOT_SPEED_DN 0 Max descent rate (cm/s) at zero throttle. 0 means it matches SPEED_UP.
THR_DZ 100 Size of the deadzone (in PWM/10). 100 = +/- 10% around mid-stick.
PSC_POSZ_P 1.0 Position Z P-gain. Converts altitude error to target velocity.
PSC_VELZ_P 5.0 Velocity Z P-gain. Converts velocity error to target acceleration.

Tuning & Troubleshooting

Symptom Probable Cause Corrective Action
"Rocketing" Upwards High Z-axis Vibrations. Check prop balance, secure flight controller. Check VIBE.VibZ in logs.
Yo-Yo (Oscillation) PSC_VELZ_P too high. Reduce Velocity P gain.
Drifts Down/Up slowly Barometer light sensitivity or inadequate "Hover Throttle" learning. Cover barometer with foam. Ensure MOT_THST_HOVER is learning (MOT_HOVER_LEARN).

Source Code Reference
